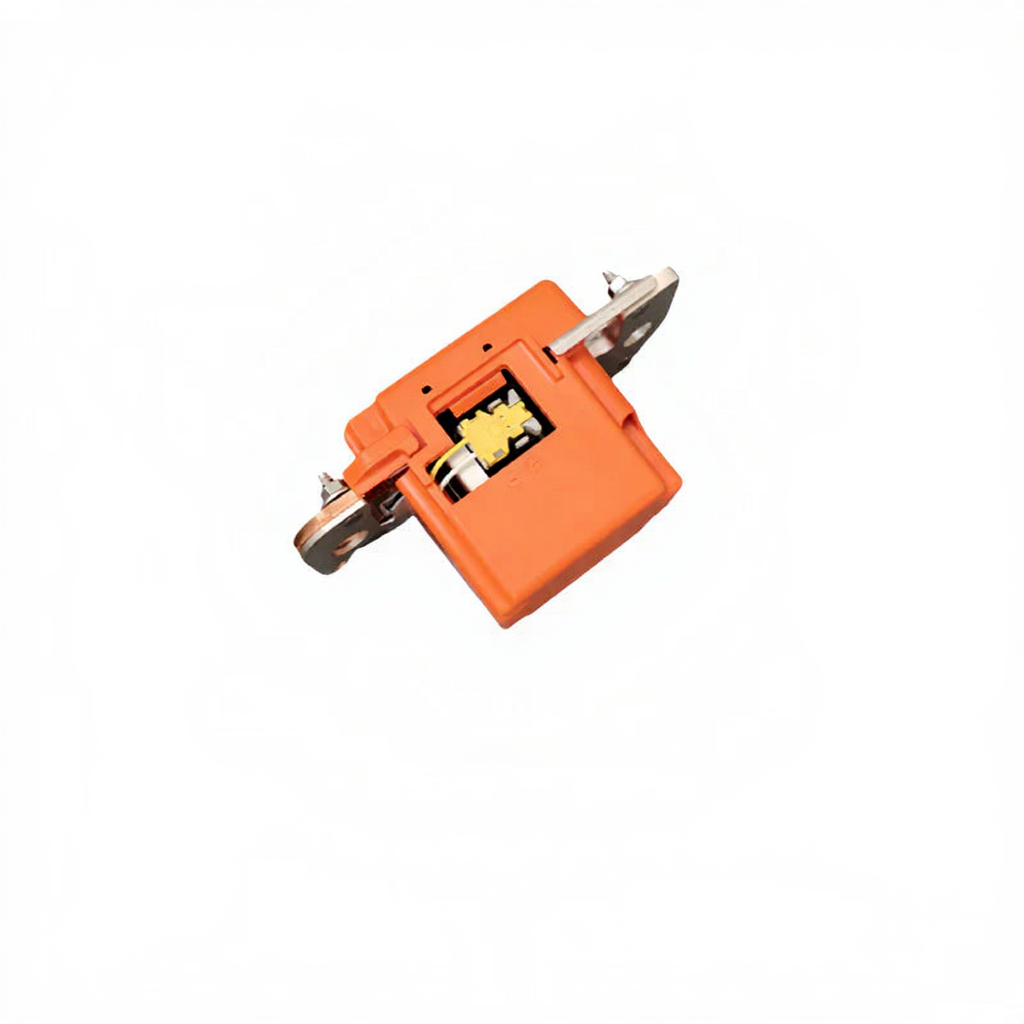

Used OEM HV Battery Pyrotechnic Disconnect for Tesla Model S | 1111313-00-F
Sale price
$143.20
Regular price
$179.00
Couldn't load pickup availability
Used OEM HV Battery Pyrotechnic Disconnect for Tesla Model S | 1111313-00-F
Regular price
$143.20 USD
Regular price
$179.00 USD
Sale price
$143.20 USD
Unit price
per
Used OEM HV Battery Pyrotechnic Disconnect for Tesla Model S | 1111313-00-F
Sale price
$143.20
Regular price
$179.00
Product Description

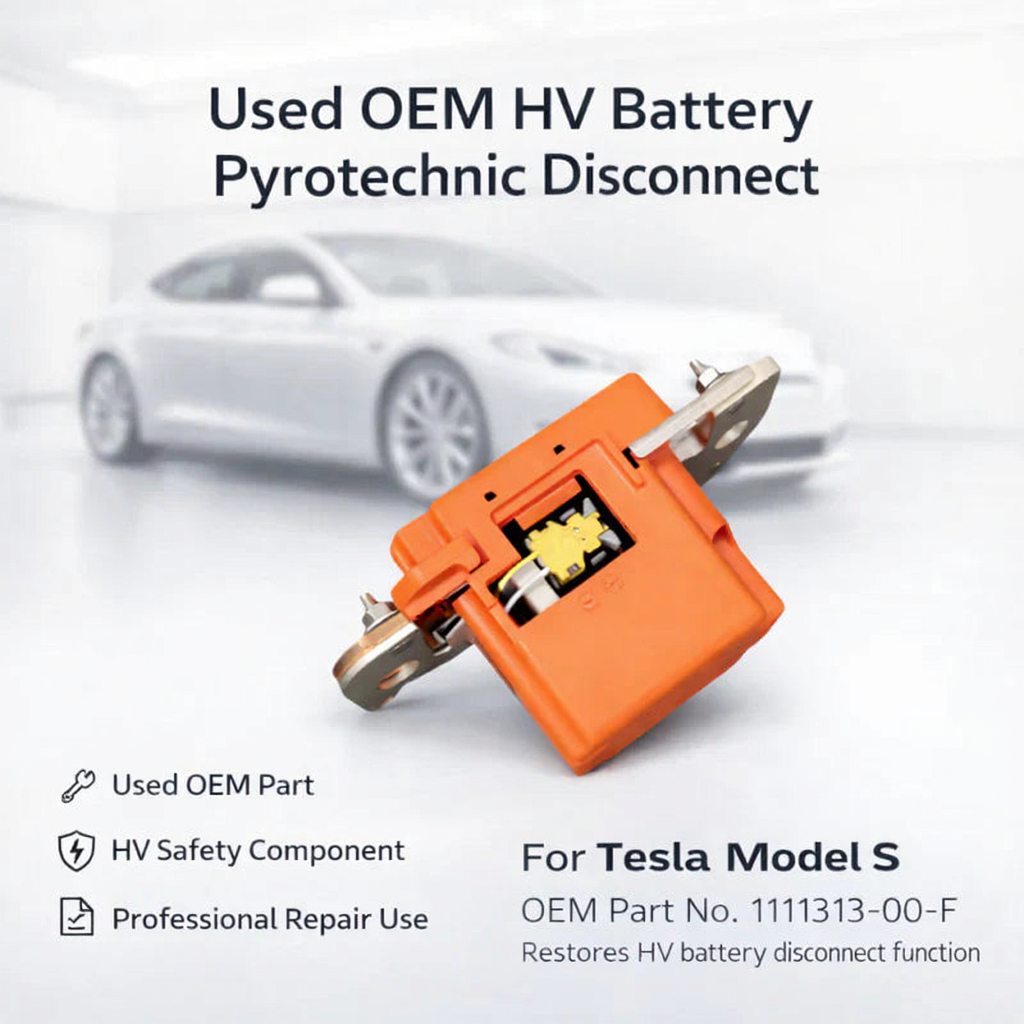

Used OEM High-Voltage Battery Safety Replacement
This used OEM pyrotechnic disconnect is designed for Tesla Model S high-voltage battery service applications where the original disconnect unit has failed, triggered, or requires replacement during repair. It is matched to OEM Part No. 1111313-00-F and positioned as a practical OEM replacement for qualified HV battery service work. Tesla service documentation identifies this component as a pyrotechnic disconnect rated at 2000A, confirming that it is a high-voltage battery safety component rather than a standard low-voltage fuse.
Built for Professional HV Battery Repair
This is a safety-related electrical component used within the high-voltage battery system. It is best suited for professional repair scenarios involving HV battery service, fault diagnosis, triggered disconnect replacement, or post-incident restoration. Tesla service information places this part within HV Battery Electrical Components and treats replacement as a qualified high-voltage repair procedure.
OEM Part Number Clarity Matters
For high-voltage system parts, correct part number matching is essential. This product is identified by OEM Part No. 1111313-00-F, which is the key reference buyers and technicians should verify before ordering. Public market listings also use this exact OEM number for Model S pyrotechnic disconnect applications.
A More Cost-Effective OEM Alternative
Compared with high-priced new OEM inventory, a used OEM disconnect can be a more practical repair option when the correct part number and application are confirmed. Public listings show a wide pricing spread between used OEM and new OEM inventory, which supports positioning this product as a cost-effective OEM replacement for repair-focused buyers.

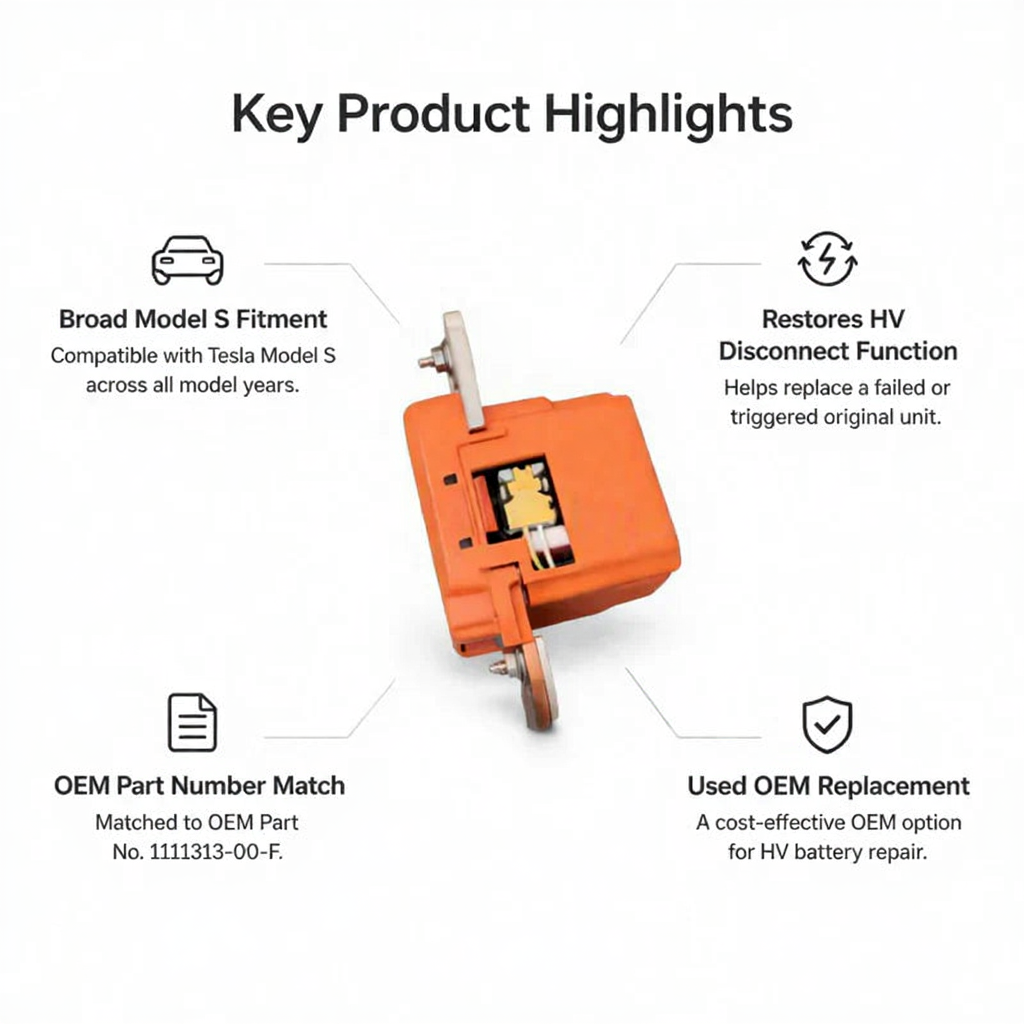

Bullet Points
- Broad Model S Fitment — Compatible with Tesla Model S across all model years based on manufacturer confirmation.
- Genuine OEM Part Number Match — OEM Part No. 1111313-00-F for more accurate replacement identification.
- Restores HV Disconnect Function — Designed to replace a failed or triggered original pyrotechnic disconnect in the high-voltage battery system.
- Used OEM Replacement — A cost-effective OEM alternative for qualified HV battery service and repair.
- Professional Repair Component — Intended for high-voltage battery service work and should be installed by qualified technicians.
Specifications Table
| Item | Details |
|---|---|
| Product Name | HV Battery Pyrotechnic Disconnect |
| OEM Part Number | 1111313-00-F |
| Vehicle | Tesla Model S |
| Fitment | All model years supported |
| Condition | Used OEM |
| Product Type | High-Voltage Battery Safety Component |
| Function | Restores HV battery disconnect function |
| Current Rating | 2000A |
| Installation Type | Professional high-voltage service required |
Tesla service information identifies the component as a pyrotechnic disconnect, current powered, 2000A.
Fitment
Fit for
- Tesla Model S
Fitment Note
- All model years supported
Ordering Note
Please verify OEM Part No. 1111313-00-F before ordering.
Installation Information

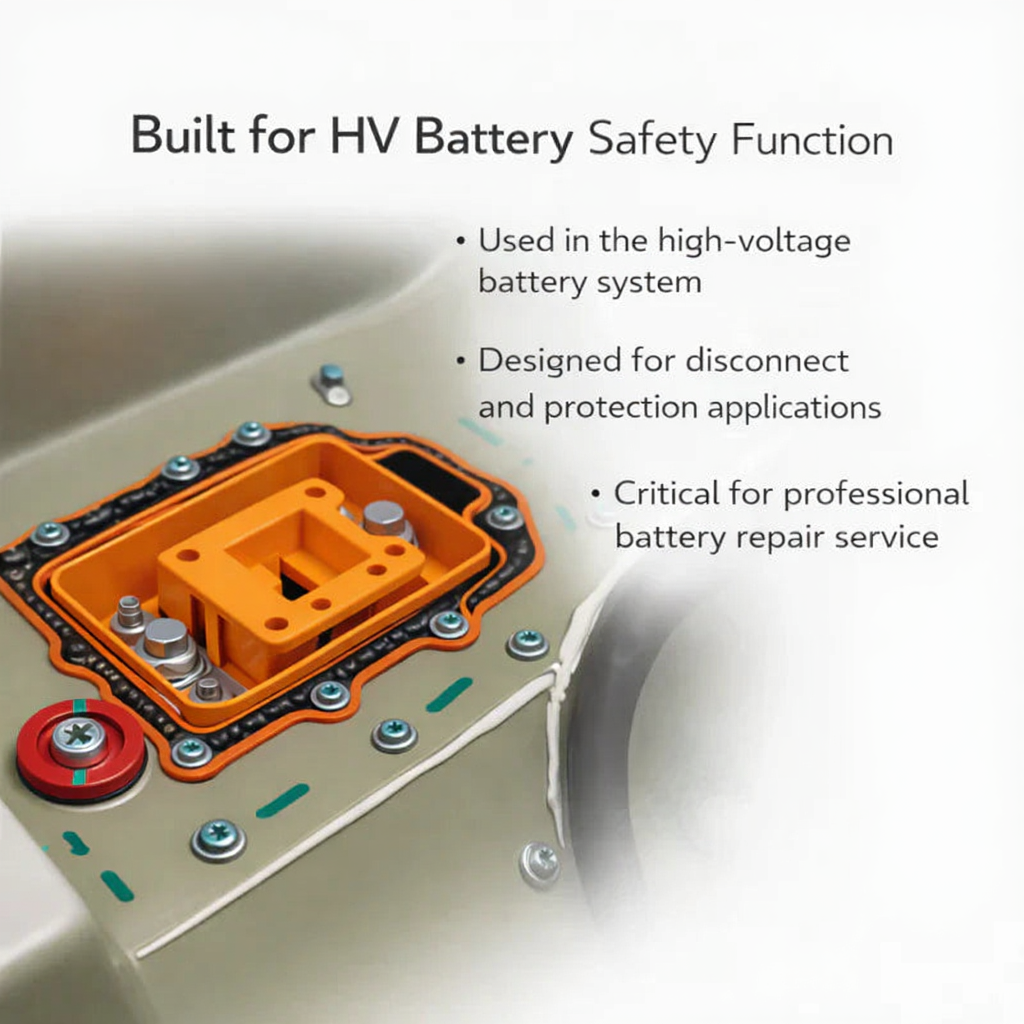

Installation Location
Necessary Installation Tools
- High-voltage insulated gloves (rated ≥ 1000V)
- Torque wrench (with 12Nm and 7.5Nm calibration)
- Insulated socket set
- ESD anti-static wristband
- Flat-head screwdriver (insulated)
Step 1
Power Off Safely
Turn off the vehicle, disconnect the 12V battery negative terminal, wait 5 minutes to discharge residual high-voltage electricity. Wear insulated gloves and ESD wristband.
Step 2
Remove Cover
Locate the high-voltage fuse cover (front trunk or under chassis), remove 6-9 fixing bolts, and take off the cover carefully.
Step 3
Take Out Old Fuse
Disconnect the fuse connector, unscrew 2 fixing nuts (12Nm) with an insulated wrench, and take out the old fuse (do not reuse).
Step 4
Install New Fuse
Check the new fuse (1111313-00-F), align with the slot, push firmly until the connector is fully seated. Ensure the arrow on the fuse points to the rear of the vehicle. Tighten the 2 nuts to 12Nm.
Step 5
Reset & Test
Reinstall the cover with new bolts (torque to 7.5Nm), reconnect the 12V battery. Start the vehicle and check for no error lights.
Notes & Safety Warnings
- High Voltage Risk: Only qualified electricians (with low-voltage electrician certificate) can operate. Never work without power-off.
- One-Time Use: The fuse is disposable; do not reuse after activation.
- Arrow Direction: The arrow must point to the rear of the vehicle; wrong direction causes system failure.
- Torque Requirement: Tighten bolts to the specified torque (12Nm/7.5Nm) to avoid short circuit or damage.
- Safe Environment: Operate in a dry area; avoid rain or humidity.
Package Includes
- 1 × Used OEM HV Battery Pyrotechnic Disconnect
- Protective packaging
Why Choose Our Product
Genuine OEM Part Number Match
Matched to OEM Part No. 1111313-00-F for more confident replacement selection.
Broad Model S Fitment
Compatible with Tesla Model S across all model years .
Used OEM Value
A more cost-effective OEM alternative to expensive new OEM inventory, especially for repair-focused buyers. Public listings show used OEM pricing materially below some new OEM inventory.
Professional Repair Positioning
This is a serious HV battery repair component, not a cosmetic accessory or generic universal part. Tesla documentation places it within the HV battery electrical system.
Clear Product Purpose
Built for replacing a failed or triggered original disconnect and restoring proper HV battery disconnect function.
Common Tesla Model S Owner and Repair Problems
- Original pyrotechnic disconnect has failed or triggered
- HV battery service requires the correct OEM replacement
- Uncertainty around used part quality in the salvage market
- Confusion about part number matching
- Need for a more affordable OEM option versus high new OEM pricing
How This Product Helps
- Replaces the original disconnect with a matching used OEM unit
- Helps restore proper HV battery disconnect function
- Supports more accurate ordering with OEM Part No. 1111313-00-F
- Offers a lower-cost OEM alternative to some new OEM inventory
- Fits Tesla Model S across all model years
FAQ
1. What does this part do?
This part is a high-voltage battery pyrotechnic disconnect used in the HV battery safety system.
2. Is this part new?
No. This is a used OEM replacement part.
3. Which vehicle does it fit?
It fits Tesla Model S across all model years .
4. What is the OEM part number?
The OEM part number is 1111313-00-F.
5. Is this a standard fuse?
No. It is a pyrotechnic disconnect used in the high-voltage battery system, not a standard low-voltage fuse.
6. Is professional installation recommended?
Yes. Because this is a high-voltage battery system component, professional installation is strongly recommended. Tesla service procedures require qualified technicians.
7. Can this replace a triggered or failed original unit?
Yes. It is intended as an OEM replacement for a failed or triggered original pyrotechnic disconnect.
8. What should I confirm before ordering?
Please confirm your vehicle application and OEM Part No. 1111313-00-F before ordering.
